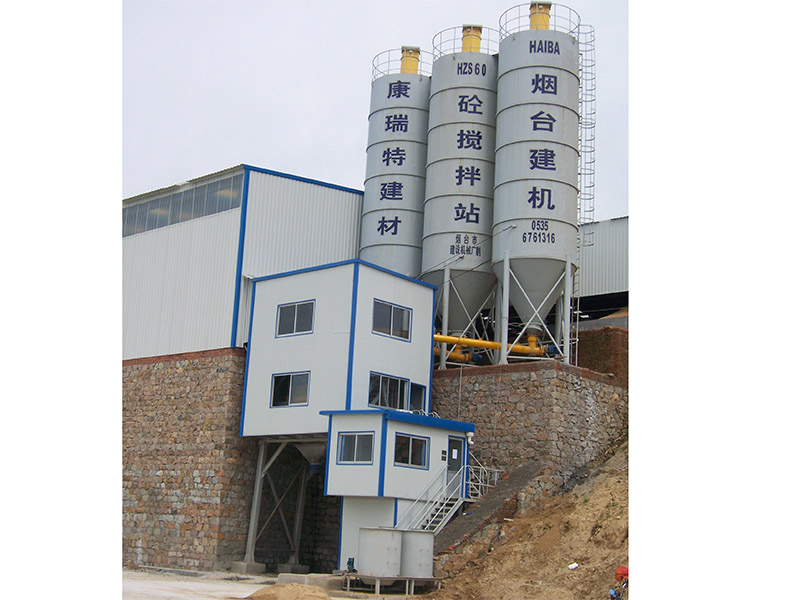

Ready-mixing Concrete Batching Plant Series

Ready-mixing Concrete Batching Plant Series

Consultation Hotline +860535-6760598

Parameter

READY-MIXED CONCRETE MIXING PLANT SERIES

Model/Item		HLS60	HLS90	HLS120	HLS150	HLS180	HLS200
Whole machine	Theoretical productivity（m³/h）	60	90	120	150	180	200
	Control mode	Computer
	Weighing mode	Electrical scale
	Discharging height（m）	3.8
	Whole machinery capacity（kw）	140	165	200	240	255	370
Mixer	Model of mixer	MT1500/1000	MT2250/1500	MAO3000/2000	MAO4500/3000	MAO4500/3000	MAO6000/4000
	Mixing power（kw）	18.5×2	30×2	37×2	55×2	55×2	75×2
	Charging volume（L）	1600	2500	3200	4600	4600	6500
	Discharging volume（L）	1000	1500	2000	3000	3000	4000
	Diameter of macadam/pebble（mm）	40~80	40~80	40~100	40~100	40~100	40~100
Aggregate storage system	Diameter of macadam/pebble（mm）	40~80	40~80	40~100	40~100	40~100	40~100
	Batcher scale model	DPL2400A	DPL2400B	DPL3200	DPL4800A	DPL4800	DPL6400
	Types of ingredients	3Piece	3~4Piece	4Piece	4Piece	4Piece	4Piece
	Aggregate storage hopper volume（m³）	8×3	15×3~4	20×4	25×4	25×4	地仓
	Weighing range & accuracy	200~3000±2%	1800×3~ 3±2%	2200×4~±2%	3500×4~±2%	3500×4~±2%	4800×4~±2%
	Horizontal belt conveyor capacity（t/h）	280	480	480	800	800	1000
Powder storage system	Slant belt conveyor capacity（t/h）	350	600	600	1000	1000	1100
	Powder storage capacity（t）	100×2	100×3	100×4	200×4	200×4	300×4
	Screw conveyor capacity（t/h）	55	70	80	110	110	150
	Cement weighing range & accuracy	100~600±1%	200~1000±1%	200~1200±1%	200~1600±1%	200~1600±1%	200~1200±1%
	Coal flyash storage system	50~200±1%	50~350±1%	50~500±1%	50~800±1%	50~800±1%	50~800±1%
Water additives storage system	Water weighing range（kg）	50~400	50~500	50~500	50~800	50~800	50~1000
	Water weighing accuracy	±1%
	Liquid additives weighing range（kg）	5~30	5~60	5~60	5~80	5~80	5~80
	Liquid additives weighing accuracy	±1%
